On writing a network stack (1/2)

I am writing a minimum viable network stack from scratch for ArvernOS (a UNIX-like toy kernel). This two-part story describes some protocols of the TCP/IP stack as well as some implementation details in the context of ArvernOS.

There are different ways to approach a problem like “let’s write a network stack”. The most sane solution is probably to not do it because there are many great implementations already (lwIP for example). On the other hand, I learn a lot more by doing than by passively studying existing software or RFCs so 🤷

The “stack” I am referring to is everything that happens after a program calls functions like socket(2), recvfrom(2), etc. and until these functions return. In ArvernOS, but I think that would apply to Linux as well, the network stack is part of the kernel code and (user) programs interact with it using system calls.

When I started the implementation of the ArvernOS network stack (in December 2020), my plan was to write the minimal amount of code to (1) add support for a network card in my kernel and (2) send some valid data. I designed this stack without looking at other existing implementations. That might be a problem in the future, we’ll see.

ArvernOS network stack in (early) 2022 Figure 1: ArvernOS network stack in (early) 2022, which is divided into 5 layers (the TCP/IP model sits on top of a physical layer)

Figure 1 depicts the 5 different layers/protocols already implemented in ArvernOS: I chose to have a first distinct physical layer, and then we have the 4 layers of the TCP/IP model. This makes the first 4 layers of this model similar to the OSI model as well.

Each implementation is far from perfect but it is “functional”. In this article, I introduce the three first layers (at the bottom), which cover three network protocols: Ethernet (as per IEEE 802.3), ARP and IPv4.

Layer 1: RTL8139 Network Chip

Disclaimer: This section is specific to ArvernOS but a network stack needs some hardware eventually, and that is often fairly specific to the kernel/OS (although it should be possible to have an abstraction layer for the hardware devices in the network stack itself).

The first step was implementing a driver for an old Ethernet network card (RTL8139). Why this specific one? Mainly because I knew nothing about network cards or drivers, the OSDev wiki had good resources on that matter, and this card was available in QEMU. If I had to chose a driver to write again, I’d probably write a virtio-net driver because that’d allow me to use it on many virtual machines (and on some cloud providers, potentially).

ArvernOS "Layer 1" Figure 2: ArvernOS “Layer 1” is basically a driver to send/receive data

Implementing the RTL8139 driver wasn’t too complex (see these source files: drivers/rtl8139.h and drivers/rtl8139.c). The driver transmits data to the hardware by putting it at the right location in memory and it receives data using hardware interrupts, which are handled with a simple function that copies the data from one memory location to another. These two functions are depicted in Figure 2. Under the hood, the hardware does the conversion from bytes to an analog signal on the actual physical support (i.e. an Ethernet cable).

I chose to represent an Ethernet card as a network interface (defined in this header file: kernel/net/net.h). It is a thin abstraction layer on top of some configuration (like the MAC/IP addresses of the interface itself as well as the gateway and a DNS server), and the driver itself.

With that, it was time to write some more code to send and receive data.

Layer 2: Ethernet

One thing to understand about Ethernet cards like the one above is that they exchange data with other machines within the same LAN (a “home” or “office” network for instance). Machines are connected to each other with physical cables.

At this level (or layer in OSI model parlance), we send and receive frames using MAC addresses. A MAC address looks like this: 52:55:0a:00:02:03. It’s possible to target a specific machine but only if we know its MAC address. Otherwise we have to use the broadcast MAC address, which target all machines configured to accept broadcasted frames (network cards can be configured to ignore such frames).

💡 Layer 2 in ArvernOS

ArvernOS Layer 1 + 2 Figure 3: ArvernOS Layer 1 + 2

In ArvernOS, most protocol implementations provide two functions to receive and send data, which is what Figure 3 shows. The Ethernet implementation is defined in kernel/net/ethernet.h. With this network stack, when we send data, the upper layers call the lower ones. It is the opposite when we receive data, which is why rtl8139_receive() calls ethernet_receive_frame() in Figure 3.

This “glue” between the driver code (rtl8139_receive() in this example) and the Ethernet layer (ethernet_receive_frame()) is currently implemented in net_interface_init() (see this line). Depending on the driver type, we configure the right callback function on the interface. The driver has access to this interface so, when it receives data, it can forward the data to the upper layer (which is unknown from its perspective) via the interface:

// drivers/rtl8139.c

static net_driver_t driver = {
  .type = 1, // ARP_HTYPE_ETHERNET
  .name = "RealTek RTL8139",
  .get_mac_address = rtl8139_get_mac_address,
  .transmit = rtl8139_transmit,
  .interface = NULL, // will be set in `net_interface_init()`.
};

void rtl8139_receive()
{
  // ... some code to read the frame/len from a buffer ...

  driver.interface->receive_frame_callback(driver.interface, frame, len);

  // ...
}

I am still wondering if this is the right approach. Sure, it works but there is no buffering so every single frame will be sent to the upper layers in the network stack, one by one. In Linux, network device drivers seem to use the netif_receive_skb() function to pass data up the stack (via napi_gro_receive()), and that definitely involves some buffers.

Anyway, given Ethernet required MAC addresses and broadcasting all frames didn’t sound to appealing, the next logical step was to find a way to discover MAC addresses. My “long-term” goal was to write an IP-oriented network stack so I looked into ARP first.

Layer 2.5: Address Resolution Protocol (ARP)

ARP is a popular protocol to find the recipient MAC address when we know its IP address (or another internet layer address).

It works like this: machine A wants to know the MAC address of machine B. If A knows the IP address of B, it can send an ARP request, i.e. a frame broadcasted on the LAN asking who has <ip address>?. If machine B receives broadcasted frames, it will sends an ARP reply to A and that’s how A will know the MAC address of B.

💡 Layer 2.5 in ArvernOS

ArvernOS Layer 1 + 2 + ARP Figure 4: ArvernOS Layer 1 + 2 + ARP (Layer 2.5)

Currently, the network stack contains a naive ARP implementation (defined in this header file: kernel/net/arp.h). No ARP cache. No Reverse ARP. As depicted in Figure 4, when receiving data, the Ethernet code has to decode the frame header and read the EtherType value to know what to do next.

The ARP implementation conveniently provides a function to handle ARP packets (arp_receive_packet()), which receives the data contained in the Ethernet frame. If the EtherType is not supported, the frame is dropped.

Sending an ARP request (who has <ip address>?) is less involved because the ARP layer only has to construct the ARP packet and ask the Ethernet layer to send the packet.

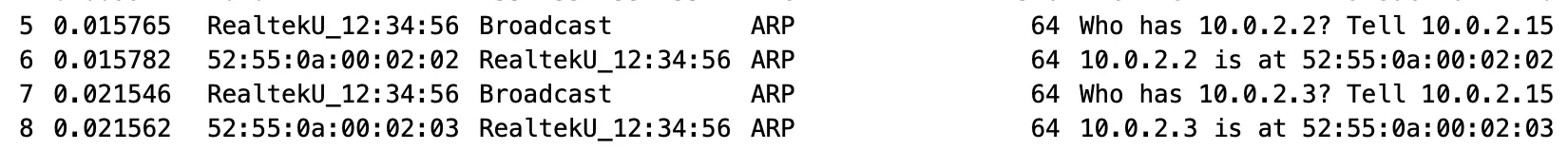

At this point, I could visualize frames being sent and received between my kernel and the emulated gateway in QEMU using Wireshark.

Screenshot of Wireshark

But, what if…?

What if A does not know the IP address of B? As mentioned previously, it is possible to broadcast frames. Another option if A knows B’s (host) name could be to use DNS to find the IP address, and then ARP.

What if A knows nothing about B? For example, it isn’t uncommon to plug an Ethernet cable to a new machine and get LAN or even Internet access almost instantaneously. This is very likely happening thanks to DHCP.

Both DNS and DHCP are high level IP protocols. In order to add support for these protocols, I had to implement a couple new layers: IPv4 and UDP.

Layer 3: Internet Protocol v4 (IPv4)

IP is the Internet Protocol and v4 is the “old” version, which I like because I can remember IP addresses (I know, right?). There is also IPv6 but I don’t know much about it. I’d recommend this IPv4 vs. IPv6 FAQ for more information.

IP allows to reach machines on a different LAN using a gateway (a.k.a. a router). When a machine wants to send an IP packet (sometimes called datagram) to a non-local machine, it has to create an Ethernet frame that encapsulates the IP packet and asks the network card to transmit it. We’ve seen that before. The thing is that we need the data to get out of the LAN so the Ethernet frame’s destination address should be the MAC address of the gateway (even though the packet is for a different machine).

When the gateway receives the frame, it reads the EtherType. Given that the frame encapsulates an IPv4 packet, the gateway determines whether the destination IP address is local. If it is not local, it modifies the frame’s destination MAC address to set the MAC address of its own gateway and forwards it. When the packet arrives to a gateway that knows the recipient, the destination MAC address is set to the one of the recipient machine. The recipient reads the EtherType as well, and then parses the IPv4 packet.

Each IPv4 packet has a protocol field that indicates the type of data encapsulated in the packet. Common types include ICMP (“ping”), UDP and TCP.

💡 Layer 3 in ArvernOS

ArvernOS Layers 1 + 2 + IPv4 Figure 5: ArvernOS Layer 1 + 2 + IPv4

Figure 5 shows how the IPv4 implementation is integrated in the network stack for ArvernOS. It is very similar to what has been described previously. When receiving a frame, the Ethernet layer reads the EtherType and calls ipv4_receive_packet() when its value is IPv4. A not-so-fun but still interesting part of the IPv4 implementation has been to compute correct checksums as specified in the RFC 1071.

When I implemented IPv4, I also implemented ICMPv4 so that I could verify my network stack implementation by ping-ing another machine. Interested readers can find the code in kernel/net/icmpv4.c.

One more thing for today…

Lately, I started to work on a completely unrelated feature for ArvernOS: a Linux compatibility layer (see this draft PR), which would allow unmodified Linux binaries to run on ArvernOS. This involved learning a lot about the System V ABI and other low-level Linux and “libc” stuff but I made good progress. I was able to run a custom BusyBox build statically compiled with musl on (and for) Linux.

Why would I mention that in an article about network protocols, though? Well, I compiled BusyBox with ping and I was able to execute it on ArvernOS (and yeah, the time seems incorrect):

BusyBox's ping executed on ArvernOS

traceroute kinda works, too. It is cool to see that well-known existing tools can somehow leverage this little network stack. As I said before, it isn’t perfect but it is functional.

The End.

That’s it for today. Let me know if you have questions or comments (email or Twitter). In part 2, we’ll cover UDP, DHCP and DNS.
